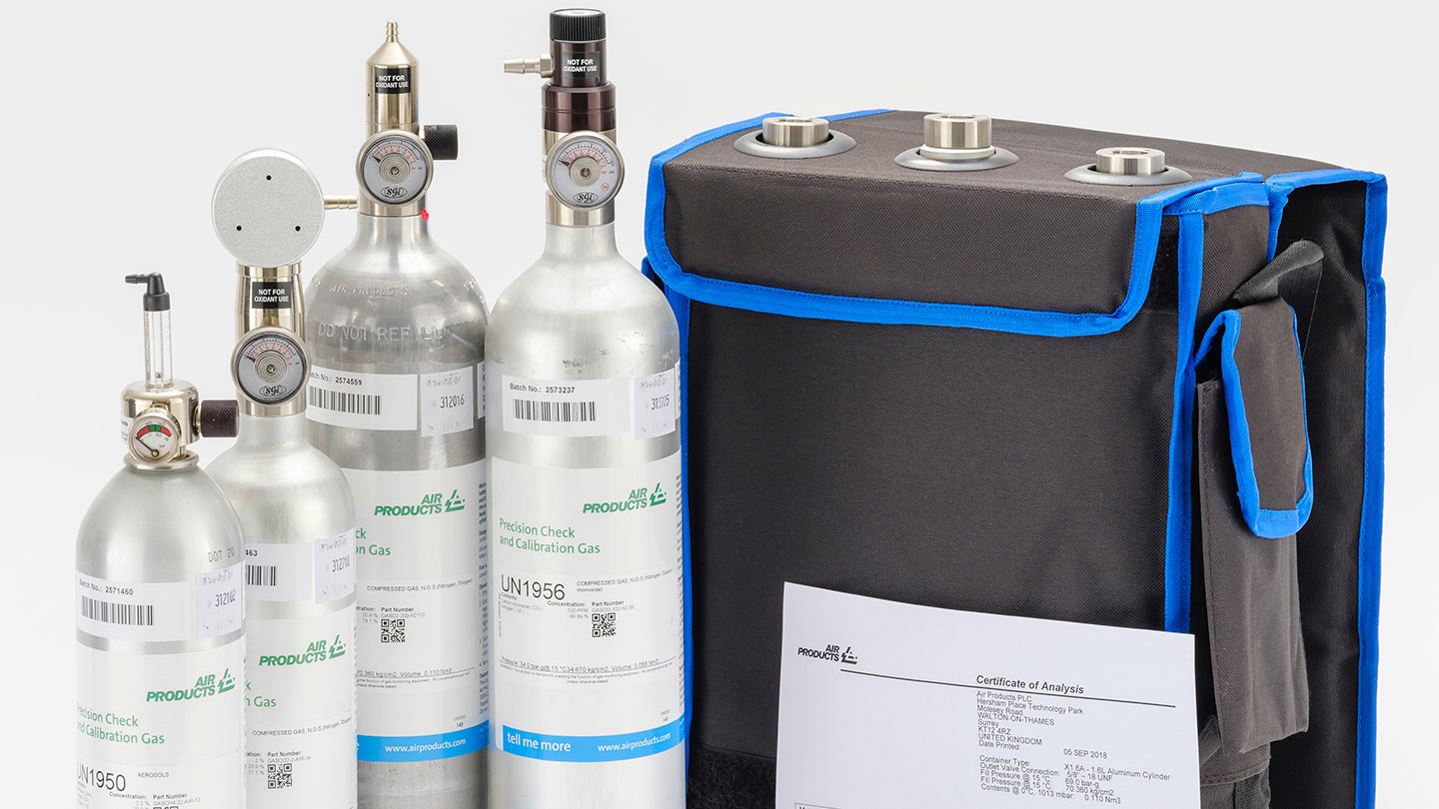

Canister family, recycler, carry bag

Nem újratölthető kanna és kapcsolódó tartozékok

Az Air Products a felszerelések és kiegészítők teljes skáláját fejlesztette ki, hogy kiegészítse az átfogó tartálykínálatot.

Az Air Products szorosan együttműködve ügyfélkörével megérti azoknak a berendezéseknek a kritikus fontosságát, amelyek segítségével a gázkeverékeket kiszerelhetik tartályából és aeroszoltartományából.

Ezek sokféle változatban és változatban állnak rendelkezésre, biztosítva az alkalmazhatóságot szinte minden alkalmazáshoz és áramlási sebességhez.

Ezeknek a szabályozóknak a kiegészítéseként egy teljes készlet tartozékokat tartalmaz, beleértve a hordtáskákat, a falra szerelhető tartókat és a kanna újrahasznosító eszközét.

ap0029-specialty-gases
Alkalmasság minden típusú gázkeverékre

Sárgaréz, sárgaréz bevonatú és rozsdamentes acél szabályozók

0754-scale
Áramlási sebesség

Rögzített és változtatható áramlási sebesség opciók

0884-ruler
Elérhetőség

Átfogó készletezés, gyors szállítás

0899-key
Kompatibilitás

Alkalmas versenyző szelepekhez C10 csatlakozással (kanna) vagy Lindal

ap0031-cylinder-storage
A kanna biztonságos ártalmatlanításának elősegítése

Az alacsony nyomatékú és rögzített helyzetű újrahasznosító eszközök lehetővé teszik a tartályok és aeroszolok könnyű eltávolítását

ap0053-move-cylinders
Biztonságos tárolás és szállítás

Számos hordtáska biztosítja, hogy a palack egyszerűen és könnyen szállítható legyen

Canister Equipment Selector Tool

Canister Equipment Selector Tool

recommended equipment

Mini-Flow-EQ-198485-419515

Mini-Flow Valve

A plated brass control valve with a flow meter and a barbed outlet that accommodates a length of polyurethane tubing. This unit allows the user to control the flow of gas by adjusting a knurled knob on top ofthe valve.

0.5 - 1.5 lpm (AP Product Number-198485)
1.5 - 2.5 lpm (AP Product Number-419515)

S Flow EQ 198252

S-Flow Valve

Offers more precise setting of adjustable flow rates than the Mini-flow valve. It features an integral flow adjustment valve and a clearly marked graduated flow meter for ease of use, and a pressure gauge indicating canister contents.

0 - 1.0 lpm (AP Product Number-198252)

Pump Flow EQ 198487

Pump Flow Balanced Flow Valve

A plated brass valve for instruments fitted with pumps. Adjusting the control knob so the ball in the flow meter is airborne simulates normal operating conditions of the pump. An excess of gas vents to atmosphere, while the major part of the gas flow will satisfy the pumps requirements.

(AP Product Number-198487)

Brass-Control-Valve-EQ-199382

Brass Control Valve with Barbed Outlet

A brass control valve with a barbed outlet which accomodates a short length of polyurethane tubing. This economical unit allows the user to control the flow of gas by adjusting a knurled knob on top of the valve. An alternative version with a threaded outlet (dimension 5M) is also available.

(AP Product Number-199382)

recommended equipment

recommended equipment

Contact Us

Put country-based phone number here?

recommended Equipment

Fixed-Flow-EQ-198325-411324-198324-404298-198840-186414-198842-198841-198322-198481-427501-451665-198483-197943-197941-197942-418248-411325-198482

Plated Brass Fixed Flow Regulator

These units are preset to deliver gas at a fixed flow rate. Standard flow rates include 0.3, 0.5, 1.0, 1.5, 2.0, and 2.5 lpm. Other fixed flow rates are also available. Ideal for non-corrosive gases. The pressure gauge shows the canister contents and a short length of polyurethane tubing is supplied.

0.05 lpm (AP Product Number-198325)
0.1 lpm (AP Product Number-198324)
0.15 lpm (AP Product Number-411324)
0.2 lpm (AP Product Number-404298)
0.3 lpm (AP Product Number-198840)
0.5 lpm (AP Product Number-186414)
1.0 lpm (AP Product Number-198842)
1.5 lpm (AP Product Number-198841)
2.0 lpm (AP Product Number-198322)
2.5 lpm (AP Product Number-198481)
5.0 lpm (AP Product Number-427501)

Trigger EQ

Plated Brass Trigger Regulator

These units are preset to deliver gas at a flowrate of 0.5, 1.0 or 6.0 lpm or unrestricted. Pressing the trigger activates the regulator and dispenses gas. It can be locked in the “on” position to achieve continuous gas flow. The pressure gauge shows the contents. Features a 4mm OD straight connection.

0.5 lpm (AP Product Number-198250)
1.0 lpm (AP Product Number-198251)
6.0 lpm (AP Product Number-435093)
~20 lpm (AP Product Number-454149) with unrestricted flow

Duo-Flow-EQ-198793-198794

Duo-Flow Regulator

This Duo-Flow regulator features a push button to give an aerosol style squirt of gas, and an on/off control for continuous fixed flow rate delivery. The pressure gauge shows the canister contents. A “breath alcohol” adaptor is supplied.

0.5 lpm (AP Product Number-198793)
1.0 lpm (AP Product Number-198794)

Push Button EQ 198326

Push Button Regulator, Plated Brass

This simple unit features a push button to give an aerosol style squirt of gas at 0.5 lpm from the large canisters. The pressure gauge shows the canister contents. A “breath alcohol” adaptor is supplied.

0.5 lpm (AP Product Number-198326)

recommended equipment

Fixed-Flow-EQ-198325-411324-198324-404298-198840-186414-198842-198841-198322-198481-427501-451665-198483-197943-197941-197942-418248-411325-198482

Stainless Steel Fixed Flow Regulator

These units are preset to deliver gas at a fixed flow rate. Stainless steel fixed flow regulators are recommended for use with highly corrosive gas mixtures like Cl2 and HCl. The pressure gauge shows the canister contents. A short length of polyurethane tubing is supplied.

0.1 lpm (AP Product Number-451665)
0.3 lpm (AP Product Number-198483)
0.5 lpm (AP Product Number-197943)
1.0 lpm (AP Product Number-197941)
1.5 lpm (AP Product Number-197942)
2.0 lpm (AP Product Number-418248)
2.5 lpm (AP Product Number- 411325)
3.0 lpm (AP Product Number-198482)

recommended equipment

Mini Flow EQ 199384-199383

Mini-Flow Valve

A plated brass control valve with a flow meter and a barbed outlet that accommodates a length of polyurethane tubing. This unit allows the user to control the flow of gas by adjusting a knurled knob on top of the valve.

0.5 - 1.5 lpm (AP Product Number-199384)
1.5 - 2.5 lpm (AP Product Number-199383)

S Flow EQ 198253

S-Flow Valve

Offers more precise setting of adjustable flow rates than the Mini-flow valve. It features an integral flow adjustment valve and a clearly marked graduated flow meter for ease of use, and a pressure gauge indicating canister contents.

0 - 1 lpm (AP Product Number-198253)

Demand-Flow-EQ-404715-198329-402214

Plated Brass Demand-Flow Regulator

Designed for instruments fitted with a pump. The regulator flow matches that demanded by the instrument. It negates separate accessories such as T-pieces and sampling bags, and avoids wasted gas. The pressure gauge shows the canister contents.

0 - 3 lpm (AP Product Number-404715)
0 - 5 lpm (AP Product Number-198329)

Dial-a-Flow-EQ-431834-431835-450162-431836-431837

Brass Dial-a-Flow Regulator

An easy to use, plated brass, lightweight regulator, giving enhanced functionality over the traditional fixed flow unit. It offers 9 pre-setflow rates in a single compact design. The pressure gauge shows shows the canister contents 0 – 3.0 lpm, and 0 – 5.0 lpm versions are available.

0 - 3 lpm (AP Product Number-431834)
0 - 5 lpm (AP Product Number-431835)
0 - 8 lpm (AP Product Number-450162)

recommended equipment

Dial-a-Flow-EQ-431834-431835-450162-431836-431837

Stainless Steel Dial-a-Flow Regulator

An easy to use, lightweight regulator, giving enhanced functionality over the traditional fixed flow unit. It offers 9 pre-set flow rates in a single compact design. The pressure gauge shows the canister contents. Recommended for use with corrosive gases.
 0 - 3 lpm (AP Product Number-431836)
 0 - 5 lpm (AP Product Number-431937)

Demand-Flow-EQ-404715-198329-402214

Stainless Steel Demand-Flow Regulator

Designed for instruments fitted with a pump. The regulator flow matches that demanded by the instrument. It negates separate accessories such as T-pieces and sampling bags, and avoids wasted gas. The pressure gauge shows the canister contents. Recommended for use with corrosive gases.

  0 - 5 lpm (AP Product Number-402214)

recommended equipment

Pressure Reg EQ 432820-422334-451814-402220-453356

Pressure Regulator, Plated Brass, Two Stage Performance

Suitable for when the precise control of the outlet pressure is required. The incorporated Exact® technology delivers two stage performance, within the footprint of a single stage unit. It is ideally suited to the 58L and 110L canisters. A stainless steel version of this regulator is also available for corrosive gas mixtures.

0 - 1.5 Bar (AP Product Number-432820)
0 - 4 Bar (AP Product Number-422334)
0 - 10 Bar (AP Product Number-451814)

recommended equipment

Pressure Reg EQ 432820-422334-451814-402220-453356

Pressure Regulator, Stainless Steel, Two Stage Performance

Suitable for when the precise control of the outlet pressure is required. The incorporated Exact® technology delivers two stage performance, within the footprint of a single stage unit. It is ideally suited to the 58L and 110L canisters. A stainless steel version of this regulator is also available for corrosive gas mixtures.

0 - 1.5 Bar (AP Product Number-402220)
0 - 4 Bar (AP Product Number-453356)

Kérdezze meg a Szakértőt

Hogyan kezelik az ügyfelek az üres tartályokat?

Az ügyfél megvásárolhat egy tartály újrahasznosító eszközt, amely nyomásmentesíti az üres tartályt, így azt nem lehet újra felhasználni. Ez aztán nem veszélyes anyagként a szokásos hulladékba vagy újrahasznosítással ártalmatlanítható.
