Nitrogen Supply Monitoring System

Enhancing safety and reliability for your operations

The Nitrogen Supply Monitoring System (NSMS) alerts you to the condition of your liquid nitrogen supply and helps you maintain a more reliable supply of nitrogen to the point of use. It specifically alerts to low liquid nitrogen storage levels and pressures, and low houseline nitrogen temperature, to ensure the vaporizers are not being overdrawn. The NSMS panel, with visual and audible alarms, can be mounted within sight and earshot of operations personnel, and gets its signals from level, pressure, and temperature sensors at the cryogenic storage system.

​Enhancing Safety and Reliability for Your Furnace Operations

Applying innovation and expertise to solving our customers’ problems is a core strength
Fail open houseline pressure control valve
Nitrogen flow cannot be interrupted by valve failure or loss of power
Sensor for low purge volume alarm
Adequate notification of low storage tank level for a controlled purge shutdown
Temperature switch for low temperature measurement and alarm
Signals vaporizer performance degradation and offers flexibility to increase nitrogen flows
Optional interface with Air Products’ Process Intelligence
Allows you to monitor and archive nitrogen consumption data
Compliance with NFPA 86
Enhances safety at furnace operations through compliance with standards

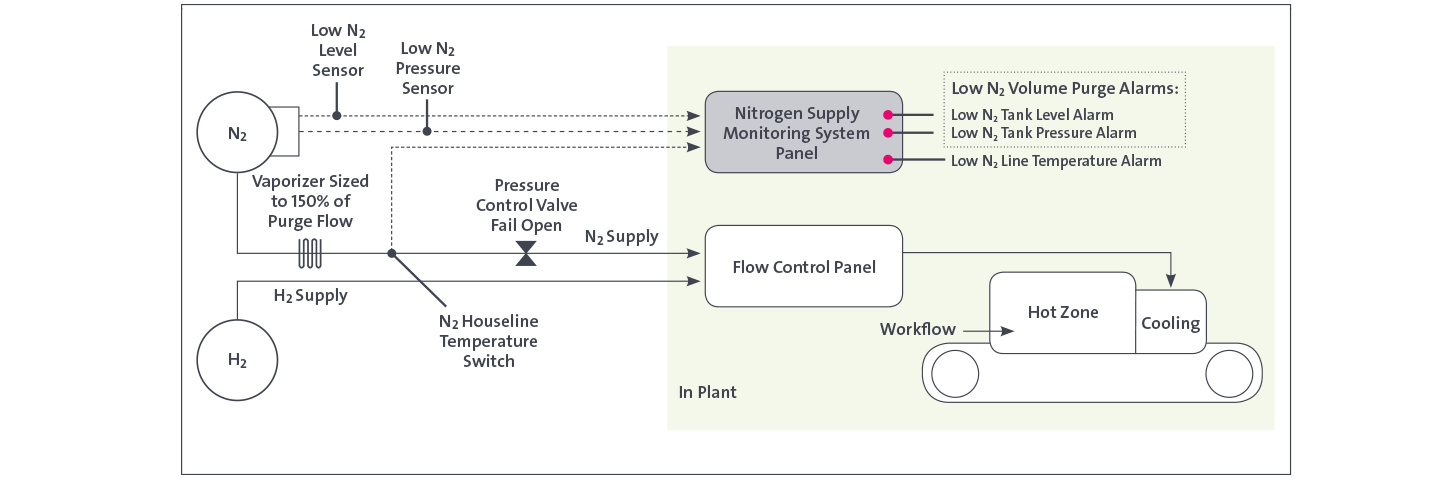

Typical Installation with the Air Products Nitrogen Supply Monitoring System
